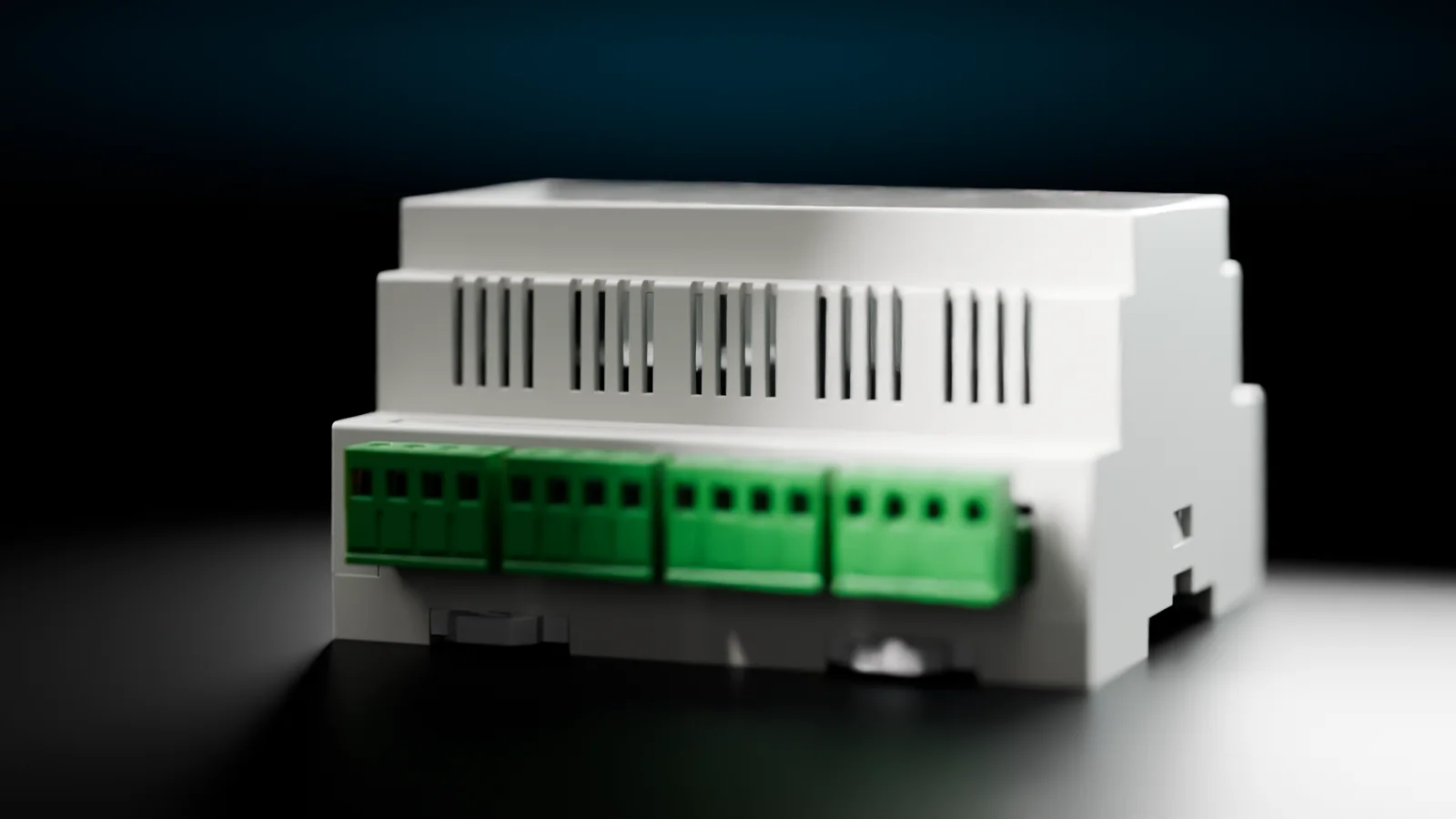

R88-channel relay module
Ref. S-RE008
Eight circuits and eight push-buttons in one DIN module, wired to the network.
At a glance
- relays
- 8 × 16 A
- inputs
- 8
- Ethernet + WiFi
- PoE
- DIN modules
- 6
Key features
- 8 relays 16 A, voltage-free contacts
- Switch 230 V lighting, or 12–24 V valves and locks
- 8 inputs for push-buttons or switches
- Ethernet 10/100 with automatic WiFi backup
- 230 V AC supply or PoE 802.3af
- Auto-off timer per relay
Who it is for
Professional integrators
Native drivers for Savant, Crestron Home, RTI, Vantage and URC, KNX over IP and Modbus TCP without gateways and a local HTTP API.
Homes
Appears in Alexa, Google Home and Apple Home through Matter, with no cloud and no manufacturer account.
Installers
Eight circuits in one 6-module box; existing push-buttons and switches are kept; wired Ethernet with WiFi as backup.
Video
Downloads
- Datasheet · R8PDF · EN · 1.2 MBDownload
- Installation guide · R8PDF · EN · 2.1 MBDownload
- Brochure · R8PDF · EN · 2.3 MBDownload
- Flyer · R8PDF · EN · 1.9 MBDownload
- Quick start · R8PDF · 353 KBDownload
- Technical drawing · R8PDF · 225 KBDownload
- Integration guide · R8PDF · EN · IntegratorsSign in
Integration guide and drivers
Available in the Integrator area (registration required).
Integrator areaPricing?
We don't publish prices. Ask us, or check the price list in the integrator area.
DIN rail · Ethernet + PoE
Same family
DIN 6 modules

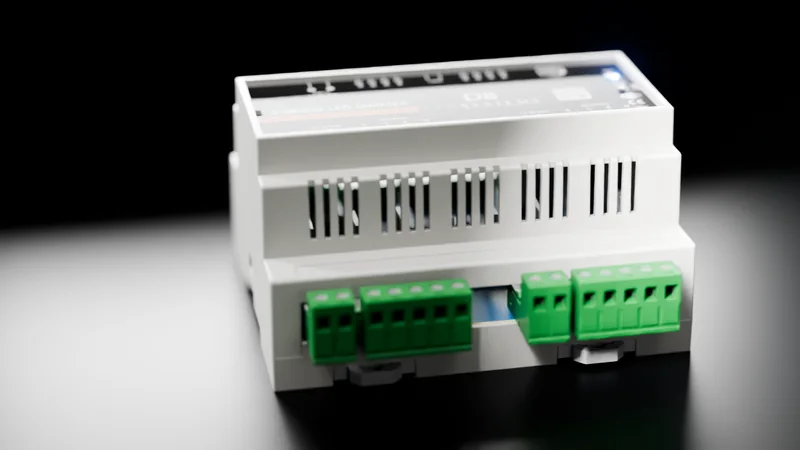

D88-channel LED dimmer
