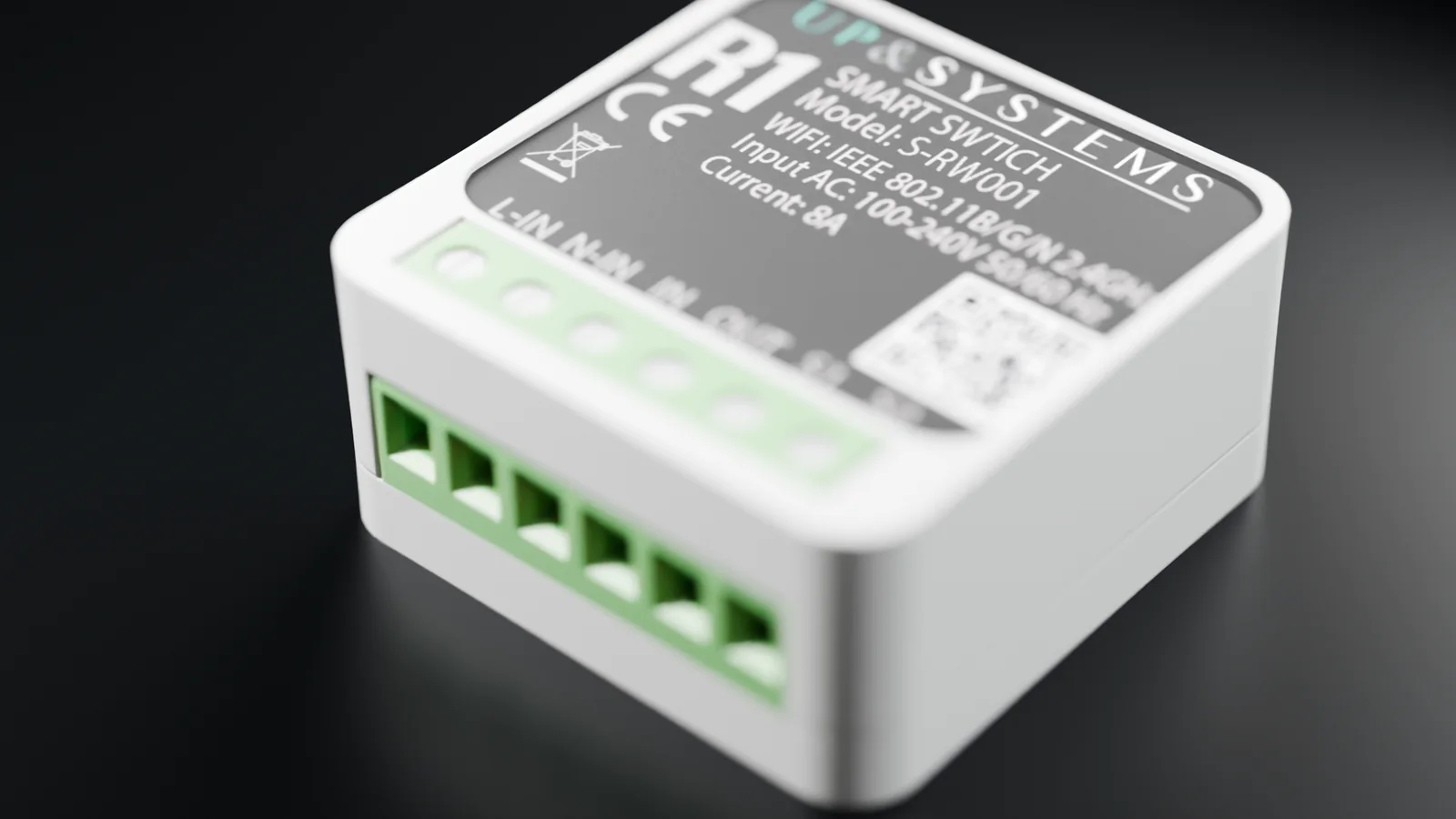

R11-channel relay, mini
Ref. S-RW001
One circuit and one switch, in a module that fits behind the switch.
At a glance
- dry contact
- 8 A
- input
- 1
- mini size
- 40 mm
- 2.4 GHz
- WiFi
Key features
- 1 relay, 8 A dry contact
- 1 input for a push-button or switch
- Fits behind the switch: 40.6 × 40.6 × 19.1 mm
- Lights, electric locks and gate openers
- Auto-off for locks and pulses
- Optional 12–24 V DC supply
Who it is for
Professional integrators
Native drivers for Savant, Crestron Home, RTI, Vantage and URC, KNX over IP without gateways and a local HTTP API.
Homes
Appears in Alexa, Google Home and Apple Home through Matter, with no cloud and no manufacturer account.
Installers
One module for nine wiring cases, from a plain push-button to an electric lock or a gate opener, without changing the product.
Video
Downloads
- Datasheet · R1PDF · EN · 1.6 MBDownload
- Installation guide · R1PDF · EN · 4.1 MBDownload
- Brochure · R1PDF · EN · 3.4 MBDownload
- Flyer · R1PDF · EN · 2.1 MBDownload
- Quick start · R1PDF · 333 KBDownload
- Technical drawing · R1PDF · 176 KBDownload
- Integration guide · R1PDF · EN · IntegratorsSign in
Integration guide and drivers
Available in the Integrator area (registration required).
Integrator areaPricing?
We don't publish prices. Ask us, or check the price list in the integrator area.
